Modelo: EWT4500A
Marca: PEDIDO DEL OEM ACEPTABLE
Fuente De Alimentación: Eléctrico
Solicitud: ATV / UTV
Voltaje: 24 V, 12V
Paquete: CARTÓN DE EXPORTACIÓN
transporte: Ocean,Air
Lugar de origen: CHINA
Hafen: NINGBO,SHANGHAI
Tipo de Pago: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

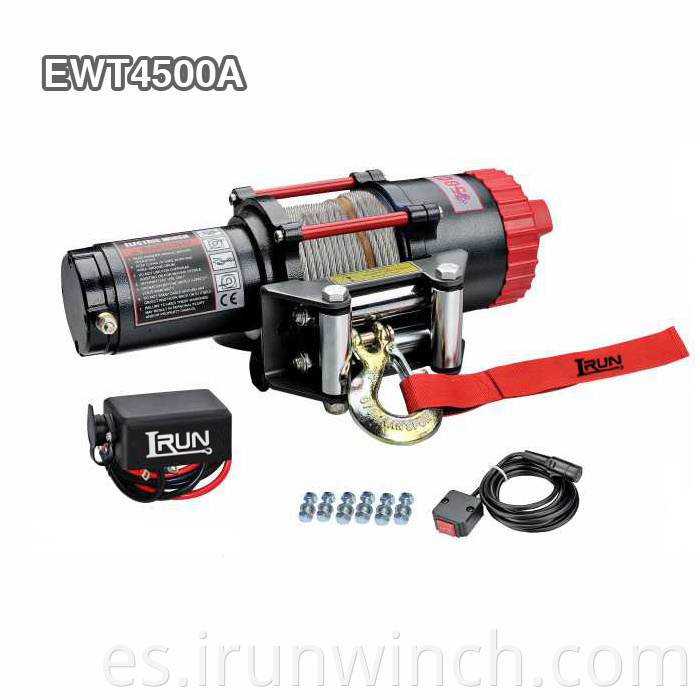

Cabrestante eléctrico de 4500 lb Artículo n.o EWT4500A
Características:
1. Engranaje reductor de acero libre
2. Estructura de embrague de patente
3. Embrague de bobinado libre
4. Acción de frenado de cono de tornillo automático
5. Accionamiento de potencia DC 12V o DC 24V opcional
6. Control de interruptor de trabajo de alto crrunt directamente
7. Control del interruptor del manillar del ATV
EWT4500
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet |
12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp
24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø 2.0″×4.9″ (Ø50.4mm×125 mm) |
| Mounting bolt pattern | 6.6″×3.0″ (168mm×76.2 mm) 4-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 10.8(3.3) | |
| 0 | 12.5(3.8) | 14.4(4.4) | 28 | 14 | 2 | 3833(1740) | 24.0(7.3) |
| 1000(454) | 8.5(2.6) | 11.1(3.4) | 140 | 50 | 3 | 3338(1515) | 39.4(12.0) |
| 2500(1135) | 6.2(1.9) | 8.8(2.7) | 170 | 90 | 4 | 2957(1342) | 47.6(14.5) |
| 4500(2041) | 5.2(1.6) | 4.6(1.4) | 220 | 110 | |||

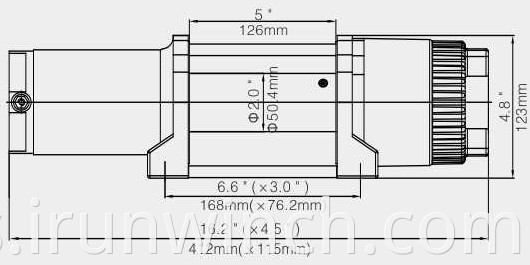

| ITEM | EWT4500D | EWT4500A | EWT4500U |
| Overall dimensions |
16.2″×4.5″×4.8″
412mm×115mm×123 mm |
16.2″×4.5″×4.8″
412mm×115mm×123 mm |
16.3″×4.5″×6.6″
413mm×125mm×168mm |
| (L×W×H) | |||
|
Net weight (Ibs)
(kgs) |
29.8
13.5 |
32.4
14.7 |
32.4
14.7 |
Dimensiones totales: 16.2 "x4.5" x4.8 "
(LxAnxAl) 412mmx125mmx123mm
Peso neto: 14,7 kgs
PRODUCTOS POR GRUPO : Cabrestantes Atv y Utv > Cabrestante lado a lado
