Modelo: EWT3500A
Marca: PEDIDO DEL OEM ACEPTABLE
Fuente De Alimentación: Eléctrico
Solicitud: ATV / UTV
Voltaje: 24 V, 12V
Paquete: CARTÓN DE EXPORTACIÓN
transporte: Ocean,Air
Lugar de origen: CHINA
Hafen: NINGBO,CHINA
Tipo de Pago: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

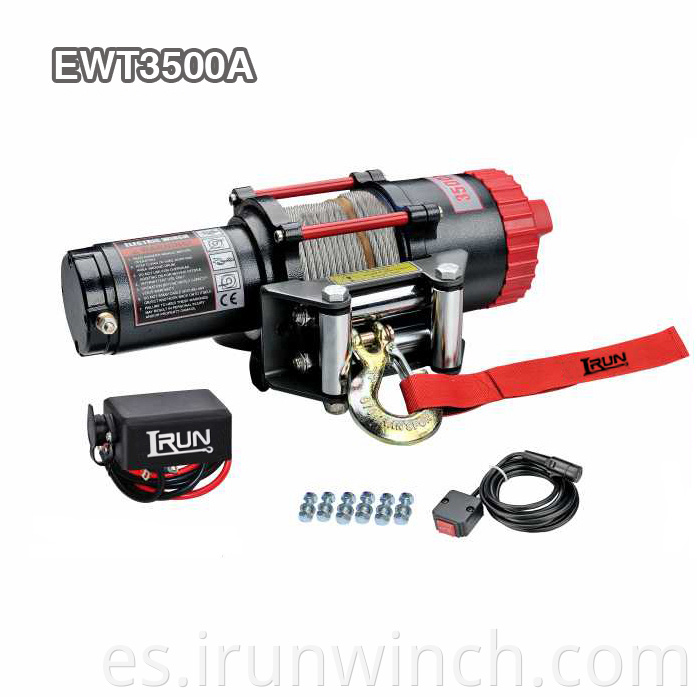

Cabrestante eléctrico UTV de 3500 lb Artículo n.o EWT3500A
Características:
1. Engranaje reductor de acero libre
2. Estructura de embrague de patente
3. Embrague de bobinado libre
4. Acción de frenado de cono de tornillo automático
5. Accionamiento de potencia DC 12V o DC 24V opcional
6. Control de interruptor de trabajo de alto crrunt directamente
7. Control del interruptor del manillar del ATV
EWT3500
| SPECIFICATION | |
| Rated line pull | 3500 lbs (1588 kgs) |
| Motor: permanent magnet |
12V:Input: 2.0kW / 2.7hp; Output: 0.9 kW / 1.2hp
24V:Input: 2.4kW / 3.2hp; Output: 1.0 kW / 1.3hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 7/32″×44.0′ (Ø5.4mm×13.4m) |
| Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3500(1588) | 8.5(2.6) | |
| 0 | 14.4(4.4) | 14.4(4.4) | 28 | 14 | 2 | 2932(1331) | 18.7(5.7) |
| 1000(454) | 9.8(3.0) | 11.1(3.4) | 80 | 50 | 3 | 2523(1145) | 29.8(9.1) |
| 2500(1134) | 7.2(2.2) | 8.8(2.7) | 150 | 70 | 4 | 2214(1005) | 44.0(13.4) |
| 3500(1588) | 5.9(1.8) | 4.9(1.5) | 170 | 100 | 5 | ||
| ITEM | EWT3500D | EWT3500A | EWT3500U |
| Overall dimensions |
14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.6″×4.5″×6.3″
372mm×115mm×160 mm |
| (L×W×H) | |||
| Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
| (kgs) | 11.2 | 12.3 | 12.2 |

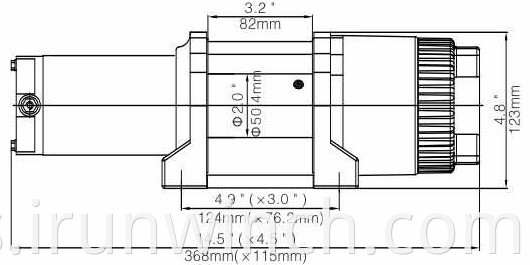

Dimensiones totales: 14.3 "x4.5" x4.8 "
(LxAnxAl) 368mmx115mmx123mm
Peso neto: 12,3 kgs
PRODUCTOS POR GRUPO : Cabrestantes Atv y Utv > Cabrestante lado a lado
