Modelo: EWP3500U
Marca: PEDIDO DEL OEM ACEPTABLE
Fuente De Alimentación: Eléctrico
Solicitud: ATV / UTV
Voltaje: 24 V, 12V
Paquete: CARTÓN DE EXPORTACIÓN
transporte: Ocean,Air
Lugar de origen: CHINA
Hafen: NINGBO,SHANGHAI
Tipo de Pago: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

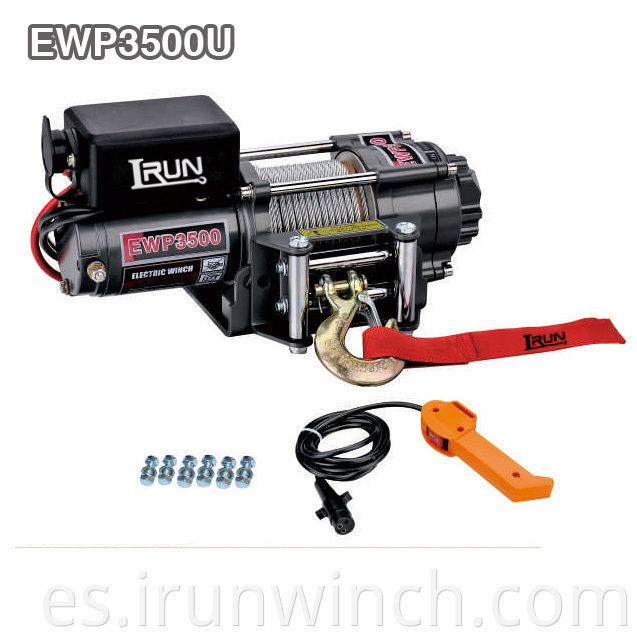

Cabrestante eléctrico UTV 3500 lbs N.o de artículoEWP3500U
Características:
1. Engranaje reductor de acero libre
2. Estructura de embrague de patente
3. Embrague de bobinado libre
4. Acción de frenado de cono de tornillo automático
5. Accionamiento de potencia DC 12V o DC 24V opcional
6. Control de interruptor de trabajo de alto crrunt directamente
7. Control del interruptor del manillar del ATV
8. Fijación desmontable de la caja de control opcional
9. Caja de control de fijación separada opcional
10. Control remoto a través de la caja de control y el interruptor.
11. Mando a distancia inalámbrico disponible
EWP3500
| SPECIFICATION | |
| Rated line pull | 3500 lbs (1588 kgs) |
| Motor: permanent magnet | 12V:Input: 2.4kW / 3.2hp; Output: 1.0 kW/1.3hp |
| 24V:Input: 2.9 kW / 3.9hp; Output: 1.2KW/1.6hp | |
| Gear reduction ratio | 170:1 |
| Cable (Dia.× L) | Ø 7/32″×42.0′ (Ø 5.4mm×12.8m) |
| Drum size (Dia.× L) | Ø 1.46″×3.15″ (Ø 37mm×80 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3500(1588) | 5.9(1.8) | |
| 0 | 10.5(3.2) | 10.5(3.2) | 20 | 16 | 2 | 2789(1265) | 13.5(4.1) |
| 1000(454) | 8.9(2.7) | 9.5(2.9) | 75 | 40 | 3 | 2319(1052) | 22.0(6.7) |
| 2000(907) | 7.5(2.3) | 8.9(2.7) | 130 | 75 | 4 | 1984 (900) | 31.2(9.5) |
| 3500(1588) | 4.6(1.4) | 7.5(2.3) | 200 | 120 | 5 | 1733 (786) | 42.0(12.8) |
| ITEM | EWP3500D | EWP3500A | EWP3500U |
| Overall dimensions | 13.2″×4.6″×4.4″ | 13.2″×4.6″×4.4″ | 13.7″×4.6″×6.5″ |
| (L×W×H) | 335mm×116mm×112 mm | 335mm×116mm×112 mm | 348mm×116mm×165mm |
| Net weight (Ibs) | 21.3 | 22.0 | 22.0 |
| (kgs) | 9.6 | 10.0 | 10.0 |
Dimensiones totales: 13,7 "x4,6" x6,5 "
(LxAnxAl) 348mmx116mmx165mm
Peso neto: 10,0 KILOGRAMOS
PRODUCTOS POR GRUPO : Cabrestantes Atv y Utv > Cabrestante Utv
