Modelo: EWD10000
Marca: PEDIDO DEL OEM ACEPTABLE
Fuente De Alimentación: Eléctrico
Solicitud: ATV / UTV
Voltaje: 24 V, 12V
Paquete: CARTÓN DE EXPORTACIÓN
transporte: Ocean,Air
Lugar de origen: CHINA
Hafen: NINGBO,SHANGHAI
Tipo de Pago: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

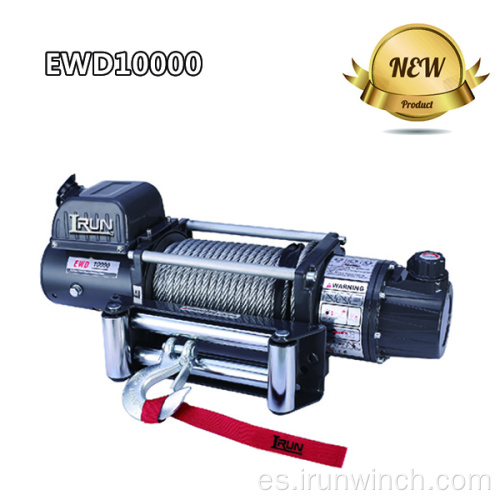

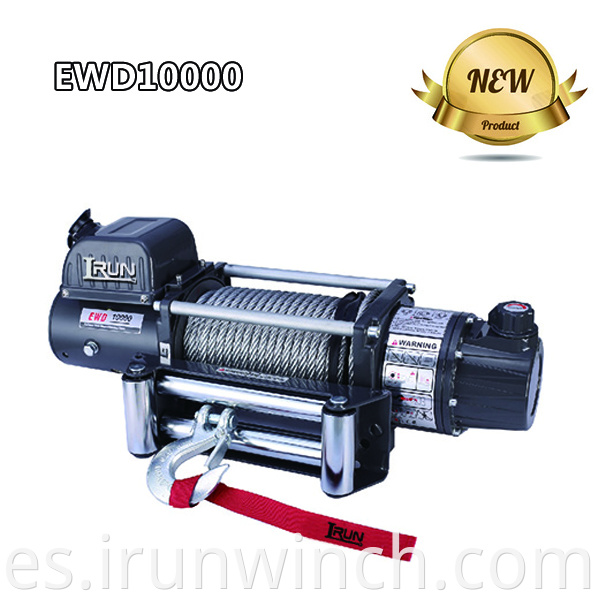

Cabrestante eléctrico 4 × 4 de dos velocidades 10000 libras con embrague patentado Artículo No. EWD10000
SERIE EWD La serie de cabrestantes son cabrestantes eléctricos de dos velocidades perfectos con Max. Fuerza de tracción de 5.500 libras a alta velocidad. El cambio de velocidad y el control del embrague pueden activarse simultáneamente para brindar más comodidad al usuario.
Características:
EWD 10000
| Specification: | ||||
| Rated line pull | 10000 lbs (4536 kg) | |||
| Motor: Series wound | 12V:Input: 4.3kW / 5.7hp | |||
| Output: 2.1kW / 2.8hp | ||||
| 24V:Input: 4.1kW / 5.5hp | ||||
| Output: 2.8kW / 3.8hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
| 6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 22.3(6.8) | 300 | 135 |
| 8000(3629) | 7.9(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 19.0(5.8) | 365 | 170 |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 360 | 170 | 4500(2041) | 13.1(4.0) | 17.1(5.2) | 400 | 210 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 10000(4536) | 17.4(5.3) |
| 2 | 7969(3615) | 39.4(12.0) |
| 3 | 6624(3005) | 65.0(19.8) |
| 4 | 5667(2571) | 85.3(26.0) |
| ITEM | EWD 10000U | EWD 10000S | EWD 10000F |
| Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
| (L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
| Net weight (Ibs/kg) | 86.0lbs / 39.0kg | 88.2lbs / 40kg | 92.6lbs / 42kg |
PRODUCTOS POR GRUPO : Cabrestantes eléctricos > Cabrestante eléctrico de 2 velocidades
